Pocket Welting Machine Withlaser
QF-302F
Product advantages

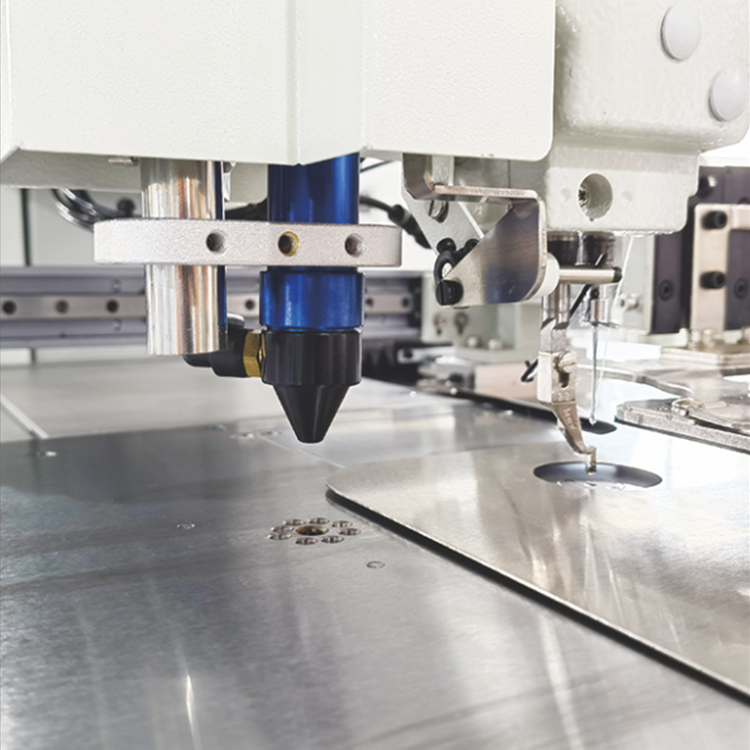

1、It features an adjustable 120W laser that ensures faster pocket opening speeds and adapts to a wide range of fabrics


2、The infrared positioning function delivers precise positioning and user-friendly operation


3、The system intelligently senses thread breakage and triggers an automatic stop


4、The sewing section utilizes a pattern sewing head with a central presser foot that lifts up to 5mm. This floating design enhances its ability to handle thick materials, and when used with standard DP17 needles, it effectively reduces skipped stitches and thread breaks, ensuring greater sewing stability and superior stitch quality


5、Broad fabric compatibility, including wovens, knits, and denim, with most special fabrics and processes achievable through custom tuning to meet quality standards


6、This process is capable of handling the cutting and sewing of various pocket styles and plackets, including single-welt, double-welt, zippered, and single-welt zippered pockets









Application field






Specifications
MODELQF-302F
BAG LENGTH110-220MM
BAG   WIDTH10-30MM
VOLTAGE 1500W
VOLUME168X120X150CM
GROSS/NET WEIGHT300KG/245KG
